Utilizes a series of pulsed voltage across the battery cells and observes the AC current that flows in response to it. Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF),Absorption Glass Mat (AGM) and GEL cell. Consistent and repeatable results, passive testing method is safe. Never discharges or drain the battery, provides unique indication of battery conditions
Item No. COBD23083
5 stars, 9 reviews.
In Stock
Price:
US$64.49/ piece
Discount Price:
US$51.59/ piece 20%
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question

BA100 Vehicle Battery Analyzer

BA100 Vehicle Battery Analyzer is designed to test the condition of the automotive battery using conductance method.

Reasons to Get BA100 Vehicle Battery Analyzer:

  1. Conductance correlates directly to the battery capacity
  2. Able to test condition of discharged battery
  3. Provides check the alternator's charging and Starter's cranking conditions.
  4. It has free maintenance and no internal batteries required
  5. It powers up when connected to the battery posts during testing

Online Update Tips:

  1. Open Offcial Website
  2. Log Name: l2h5s9x8c0b3d
  3. password: i8a0j3b6e2h9f8v

BA100 Vehicle Battery Analyzer Features:

  1. Simple and easy to use
  2. Battery Life Analysis
  3. Test batteries on and off the vehicle
  4. Accurate results in milliseconds
  5. Large easy to read LCD display
  6. Analysis Result : Good or Replace
  7. Test results based on JIS, EN, DIN, SAE and IEC Standards
  8. The major battery standards JIS, SAE, EN, DIN and IEC are supported
  9. Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF),Absorption Glass Mat (AGM) and GEL cell.

BA100 Vehicle Battery Analyzer Functionality:

  1. Life in percentage (%)
  2. Test Result: Good or Replace
  3. Internal resistance value (m? )
  4. Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating

BA100 Vehicle Battery Analyzer Specifications:

  1. System voltage: 12 Volts
  2. Input voltage range: 9V~15V
  3. Power requirements: No internal batteries required. Power on when hooked up during testing.
  4. Testing range: 100 ~ 1700 CCA, 100 ~ 1000 DIN, 100 ~ 1000 IEC, 100 ~ 1700 EN
The difference between BA100(Item No AD64) and BA101(Item No AD85):

Increasing function For BA101
  1. BA101 increases cranking system test and charging system test.
  2. BA101 increases EFB battery
  3. BA101 increases quick test function
  4. BA101 increases auto-storage functionBA101
  5. BA101 increases Print function via computer.
the difference between BA100 and BA101

II, The advantage for BA101
  1. Four button for operation, more convenient for client.

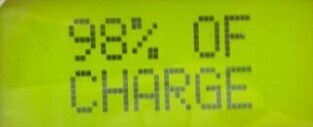

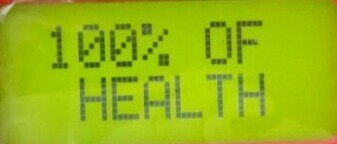

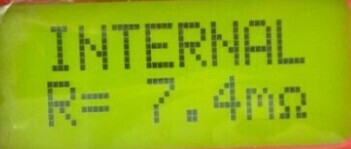

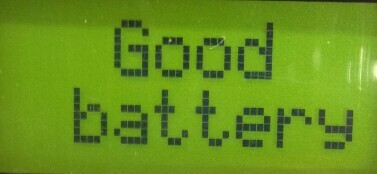

  2. Bigger display, more information. as below picture
    the difference between BA100 and BA101
  3. BA101 can shows the testing result in one screen, but BA100 only show one or two items in one screen.

    the difference between BA100 and BA101 4
    the difference between BA100 and BA101 5
    the difference between BA100 and BA101 6
    the difference between BA100 and BA101 7
    so that BA100 must need five displays to show all information

Package Including:

  • 1set x BA100 Vehicle Battery Analyzer
